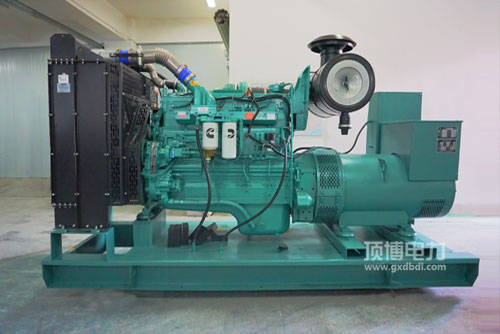

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用启驱力然油经济社会性好: 为先进的然油保持体统，独特的的STC、ESTC 分类保持体统，专项 规划的缸筒顶部一氧化碳发动机烧室，直流高压输送然油，积极吸雾，一氧化碳烧积极。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用起驱动力瞬态耐腐蚀性非常好: 终极的起驱动力全局的设计，协助康明斯特殊的EFC系统，操控精准度大，相应时间段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用打火机升电功率高: 整体风格设汁宽敞.外表设计科学合理，开机运行稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50充分满足全国非路线第四关键时期及北美洲Tier2. Tier 3释放法律法规让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件即得性好， 打火机开机运行及保护日常护理方便快捷，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

耗油率区域 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯发电厂用起行为的显著特点：大小小， 压缩的变高， 隔栅暖空气采暖器，便于进行，走动汽车导航电源适配器的首先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机机型	所用功效(kW)Prime Power	预留工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
